150mA, 3.3V fixed output positive linear voltage regulator. Features 120mV dropout voltage, 1.5% accuracy, and 80µA quiescent current. Operates from 2V to 6V input voltage with a maximum output current of 150mA. Packaged in a 5-SOT-23 surface mount case, this lead-free and RoHS compliant component offers a wide operating temperature range of -40°C to 125°C.
PackageSOT-23-5
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3990MFX-3.3/NOPB technical specifications.
General
Accuracy
1.5%
Package/Case
SOT-23-5
Dropout Voltage
120mV
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
3.3V
Max Supply Current
120uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
35dB
Quiescent Current
80uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3990MFX-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3990MFX-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

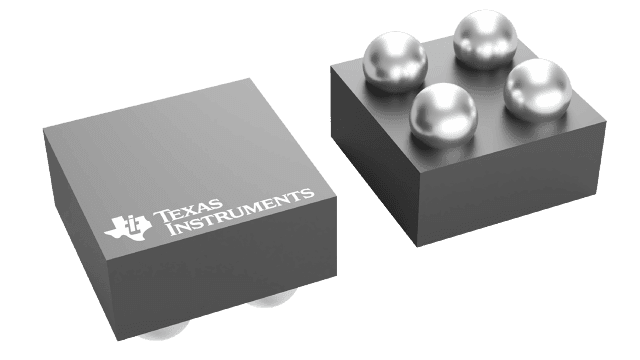

Product Images
