Texas Instruments
LP3991TL-1.3
FIXED POSITIVE LDO REGULATOR, PBGA4, 0.963 X 1.446 MM, LEAD FREE, MICRO SMD-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3991TL-1.3 technical specifications.
General
| Accuracy | 1% |
| Max Input Voltage | 4V |
| Min Input Voltage | 1.65V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 300mA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 300mA |
| Output Type | Fixed |
| Output Voltage | 1.3V |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Quiescent Current | 100uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LP3991TL-1.3 Datasheet
Download the complete datasheet for Texas Instruments LP3991TL-1.3 to view detailed technical specifications.
No datasheet is available for this part.

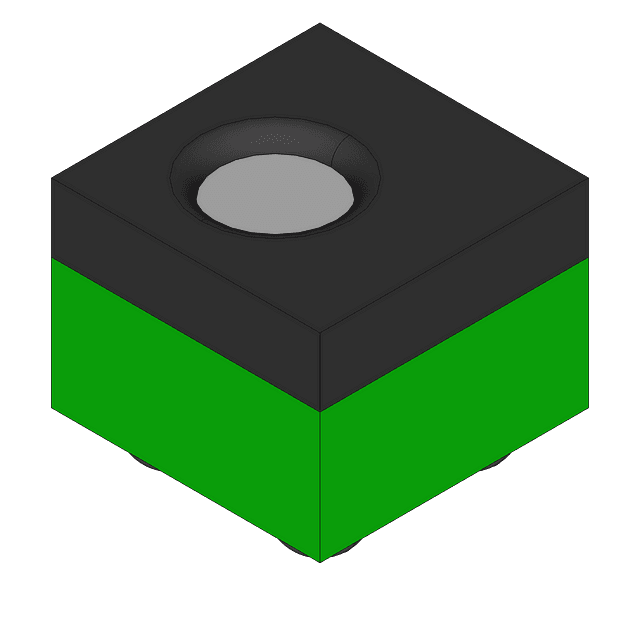

Product Images
