300mA positive fixed output voltage regulator with 2.8V output and 1% accuracy. Features a low 75mV dropout voltage and operates from a 1.65V to 4V input range. Offers a maximum output current of 300mA and a quiescent current of 100uA. This surface mount linear voltage regulator is RoHS compliant and operates across a wide temperature range of -40°C to 125°C.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3991TL-2.8/NOPB technical specifications.
General
Accuracy
1%
Dropout Voltage
75mV
Lead Free
Lead Free
Max Input Voltage
4V
Min Input Voltage
1.65V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
300mA
Min Output Voltage
2.8V
Max Supply Current
225uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
300mA
Output Type
Fixed
Output Voltage
2.8V
Output Voltage Accuracy
1%
Packaging
Cut Tape
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
100uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3991TL-2.8/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3991TL-2.8/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

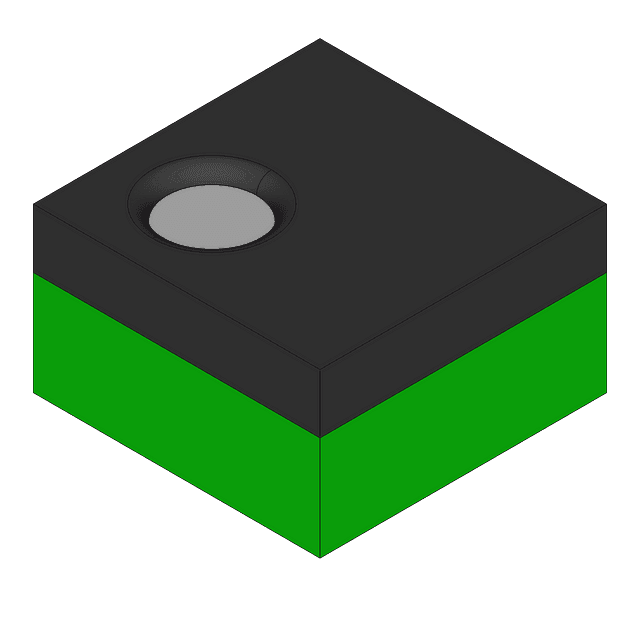

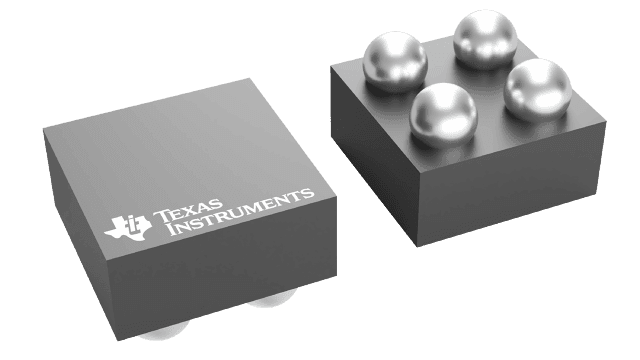

Product Images
