150mA fixed 3V positive linear voltage regulator, offering 2% accuracy and a low 60mV dropout voltage. Features active output discharge and a bypass pin, operating from 2.5V to 6V input. Maximum supply current is 200uA with a quiescent current of 150uA. Packaged in a 6-WSON surface mount for tape and reel delivery, this RoHS compliant component functions across a -40°C to 125°C temperature range.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3995ILD-3.0/NOPB technical specifications.
General
Accuracy
2%
Dropout Voltage
60mV
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
3V
Max Supply Current
200uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
50dB
Quiescent Current
150uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3995ILD-3.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3995ILD-3.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

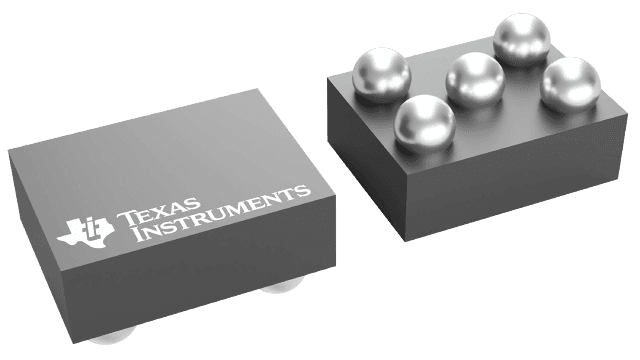

Product Images
