150mA positive fixed output voltage regulator, offering a 3V output with 2% accuracy. Features a low 60mV dropout voltage and a maximum input voltage of 6V, operating from 2.5V. This surface mount component boasts a compact 1.44mm x 1.01mm x 0.36mm DSBGA package, ideal for space-constrained applications. Includes active output discharge and a PSRR of 50dB, with a quiescent current of 150µA. Operates across a wide temperature range of -40°C to 125°C and is RoHS compliant.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3995ITL-3.0/NOPB technical specifications.
General
Accuracy
2%
Dropout Voltage
60mV
Height
0.36mm
Lead Free
Lead Free
Length
1.44mm
Max Input Voltage
6V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
3V
Max Supply Current
200uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
250
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
50dB
Quiescent Current
150uA
Radiation Hardening
No
RoHS Compliant
Yes
Width
1.01mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3995ITL-3.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3995ITL-3.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

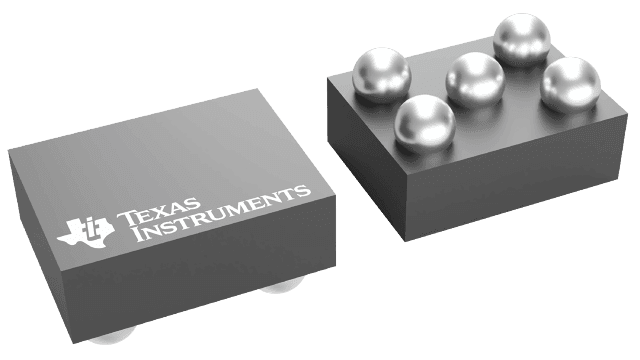

Product Images
