1.8V fixed output, positive linear voltage regulator, delivering up to 150mA output current. Features a low 60mV dropout voltage and 2% accuracy. Operates from 2.5V to 6V input voltage, with a quiescent current of 150µA. Includes active output discharge and a PSRR of 50dB. Packaged in a 5-DSBGA surface mount package, suitable for operation between -40°C and 125°C.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP3995ITLX-1.8/NOPB technical specifications.
General
Accuracy
2%
Dropout Voltage
60mV
Lead Free
Lead Free
Max Input Voltage
6V
Min Input Voltage
2.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Min Output Voltage
1.8V
Max Supply Current
200uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
50dB
Quiescent Current
150uA
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP3995ITLX-1.8/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP3995ITLX-1.8/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

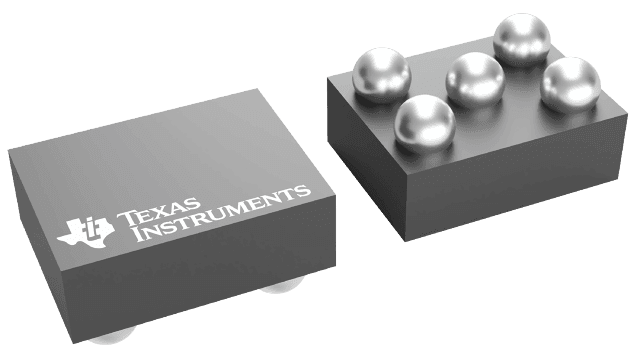

Product Images
