150mA positive fixed output voltage regulator with 2.5V nominal output and 2% accuracy. Features low 80mV dropout voltage, 50µA quiescent current, and 230µA maximum supply current. Operates from 2.5V to 5.5V input voltage, with a 40dB PSRR. Packaged in a 6-WSON surface mount for tape and reel deployment, suitable for -40°C to 85°C operation.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP5900SD-2.5/NOPB technical specifications.
General
Accuracy
2%
Dropout Voltage
80mV
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
150mA
Max Supply Current
230uA
Mount
Surface Mount
Nominal Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
2.5V
Output Voltage Accuracy
2%
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
40dB
Quiescent Current
50uA
Radiation Hardening
No
Reach SVHC Compliant
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP5900SD-2.5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP5900SD-2.5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

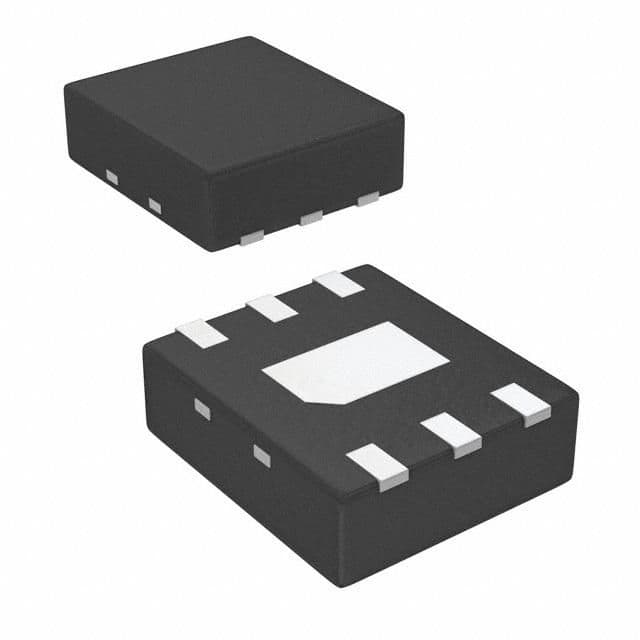

Product Images
