250mA, 2.5V fixed output positive linear voltage regulator. Features low noise, high Power Supply Rejection Ratio (PSRR) of 60dB, and ultra-low dropout. Operates with a 2.2V to 5.5V input voltage range and offers 2% output voltage accuracy. Quiescent current is 25µA, with a maximum supply current of 425µA. Packaged in a 4-DSBGA surface mount configuration, suitable for operation from -40°C to 125°C.
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LP5907UVX-2.5/NOPB technical specifications.
General
Accuracy
2%
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
250mA
Min Output Voltage
2.5V
Max Supply Current
425uA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
250mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
25uA
Radiation Hardening
No
RoHS Compliant
Yes
Tolerance
2%
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LP5907UVX-2.5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP5907UVX-2.5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

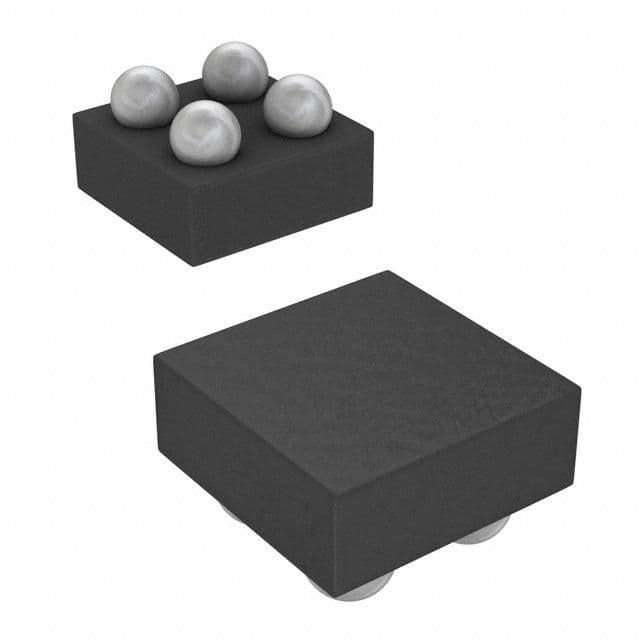

Product Images
