Texas Instruments
LP8556TMX-E05/NOPB
6 channel high-efficiency/Efficacy LED backlight driver 20-DSBGA -30 to 85
Frequency1.25MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LP8556TMX-E05/NOPB technical specifications.
General
| Frequency | 1.25MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 20V |
| Mount | Surface Mount |
| Nominal Supply Current | 2.2mA |
| Number of Channels | 6 |
| Number of Outputs | 6 |
| Number of Segments | 48 |
| Output Current per Channel | 25mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.2mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LP8556TMX-E05/NOPB Datasheet
Download the complete datasheet for Texas Instruments LP8556TMX-E05/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

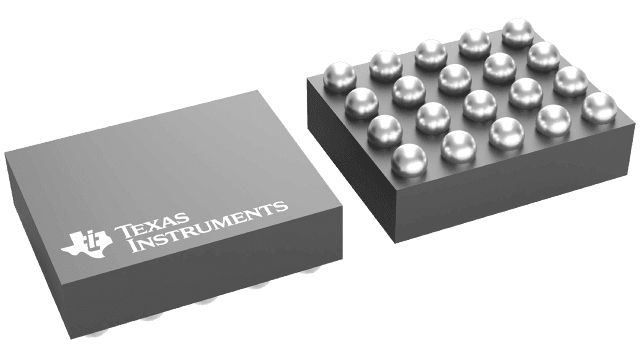

Product Images
