Charge pump IC for inverting and step-up applications, delivering a fixed -5V output voltage with up to 100mA current. Operates with input voltages from 3.5V to 15V, providing a nominal -5V output. Features a low 2.5mA quiescent current and a wide operating temperature range of -40°C to 85°C. Packaged in an 8-pin PDIP with dimensions of 9.81mm length, 6.35mm width, and 4.57mm height.
PackageP
Quick Jump:
Technical Specifications
Texas Instruments LT1054CP technical specifications.
General
Package/Case
P
Height
4.57mm
Lead Free
Lead Free
Length
9.81mm
Logic Function
Inverting
Max Input Voltage
15V
Min Input Voltage
3.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
-5.2V
Min Output Voltage
-4.7V
Max Supply Voltage
15V
Min Supply Voltage
3.5V
Nominal Output Voltage
-5V
Number of Outputs
1
Operating Supply Current
2.5mA
Output Current
100mA
Output Type
Fixed, Adjustable
Output Voltage
-5V
Package Quantity
50
Packaging
Rail/Tube
Quiescent Current
2.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Charge Pump, Buck-Boost
Weight
0.015535oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LT1054CP Datasheet
Download the complete datasheet for Texas Instruments LT1054CP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

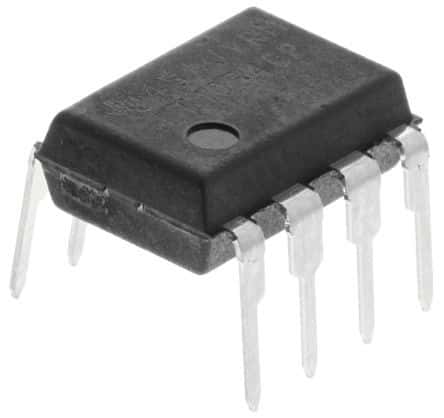

Product Images
