Texas Instruments
MAX232DWR
5-V dual channel 120kbps RS-232 line driver/receiver with +/-9V output & +/-2-kV ESD protection 16-SOIC 0 to 70
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX232DWR technical specifications.
General
Package/Case
SOIC
Data Rate
120Kbps
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
2000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
10mA
Thickness
2.35mm
Weight
0.014829oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX232DWR Datasheet
Download the complete datasheet for Texas Instruments MAX232DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

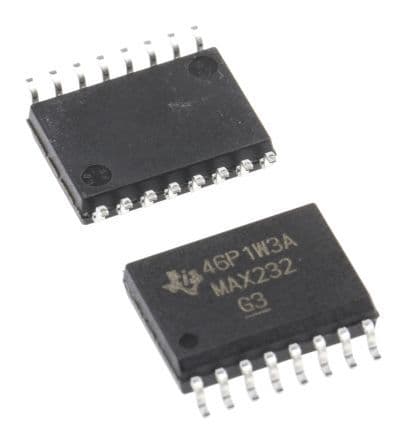

Product Images
