Dual channel RS-232 line driver/receiver supporting full duplex communication. Operates from a 3V to 5.5V supply voltage with a maximum data rate of 250Kbps. Features +/-15kV ESD protection and a receiver hysteresis of 300mV. Packaged in a 16-SOIC surface mount configuration, this RoHS compliant component is ideal for interface applications.
PackageD
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3232CDR technical specifications.
General
Package/Case
D
Data Rate
250Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
1mA
Operating Supply Voltage
5V
Output Voltage
5.4V
Packaging
Tape and Reel
Reach SVHC Compliant
No
Receiver Hysteresis
300mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.004998oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX3232CDR Datasheet
Download the complete datasheet for Texas Instruments MAX3232CDR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

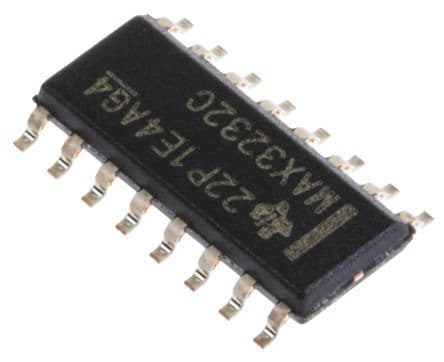

Product Images
