Dual channel RS-232 line driver/receiver, operating from 3V to 5.5V, supports data rates up to 250Kbps. Features +/-15kV ESD protection and full-duplex communication. This surface-mount transceiver, housed in a 16-SOIC package, offers 2 drivers and 2 receivers. Operates across a temperature range of -40°C to 85°C and is RoHS compliant.
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3232CDW technical specifications.
General
Package/Case
SOIC
Data Rate
250Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
40
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.014829oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX3232CDW Datasheet
Download the complete datasheet for Texas Instruments MAX3232CDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

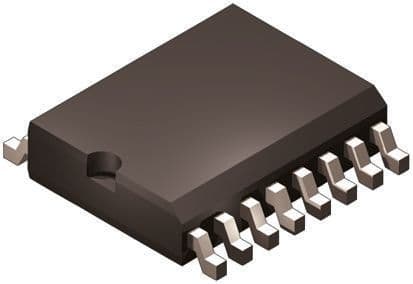

Product Images
