Dual transmitter/receiver RS-232 interface IC, featuring 2 transmitters and 2 receivers for full-duplex communication. Operates with a supply voltage range of 3V to 5.5V, typically 5V, and consumes 1mA operating supply current. Supports a data rate of 250Kbps and is housed in a 16-pin TSSOP surface-mount package. RoHS compliant and lead-free, with an operating temperature range from -40°C to 85°C.
PackageTSSOP
Current1mA
Current Rating1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3232CPW technical specifications.
General
Package/Case
TSSOP
Current Rating
1mA
Data Rate
250Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
1mA
Operating Supply Voltage
5V
Package Quantity
90
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.002183oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX3232CPW Datasheet
Download the complete datasheet for Texas Instruments MAX3232CPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

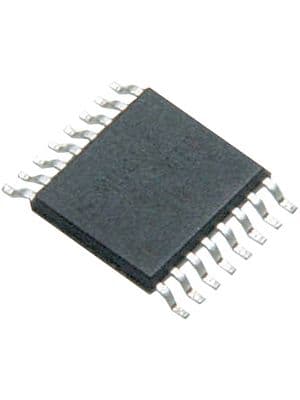

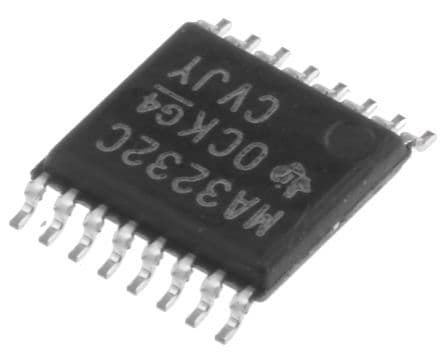

Product Images
