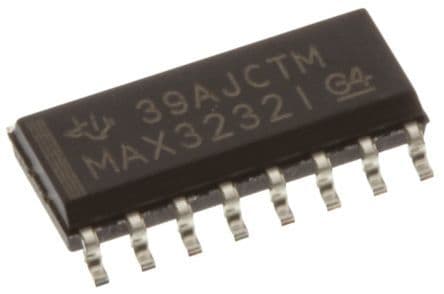

Dual transmitter/receiver RS-232 interface IC, supporting full-duplex communication at up to 250Kbps. Features two transmitters and two receivers within a single device, operating from a 3V to 5.5V supply voltage. This surface-mount component is housed in a 16-pin SOIC package (9.9mm L x 3.91mm W x 1.58mm H) and is RoHS compliant. It offers a maximum output voltage of 5.4V and an output current of 60mA, with an operating temperature range of -40°C to 85°C.
PackageD
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3232ID technical specifications.
General
Package/Case
D
Data Rate
250Kbps
Height
1.58mm
Lead Free
Lead Free
Length
9.9mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Output Current
60mA
Output Voltage
5.4V
Package Quantity
40
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.004998oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX3232ID Datasheet
Download the complete datasheet for Texas Instruments MAX3232ID to view detailed technical specifications.
