Texas Instruments
MAX3232IDB
3- to 5.5-V dual channel 250kbps RS-232 line driver/receiver with +/-15-kV ESD protection 16-SSOP -40 to 85
PackageSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3232IDB technical specifications.
General
Package/Case
SSOP
Data Rate
250Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
80
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.004536oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX3232IDB Datasheet
Download the complete datasheet for Texas Instruments MAX3232IDB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

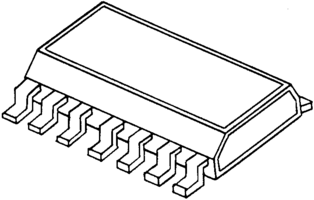

Product Images
