Triple transmitter, quint receiver RS-232 transceiver IC, featuring 3 transmitters and 5 receivers for full-duplex communication. Operates with a supply voltage range of 3V to 5.5V, typically 5V, and supports data rates up to 250Kbps with a 0.15µs propagation delay. This surface-mount component is housed in a 28-pin SSOP package, measuring 10.2mm in length, 5.3mm in width, and 1.95mm in height. It is RoHS compliant and operates within a temperature range of 0°C to 70°C.
PackageSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3243CDB technical specifications.
General
Package/Case
SSOP
Data Rate
250Kbps
Height
1.95mm
Lead Free
Lead Free
Length
10.2mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
3
Number of I/Os
16
Number of Receivers
5
Number of Transceivers
1
Number of Transmitters
3
Operating Supply Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
0.15us
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.007351oz
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX3243CDB Datasheet
Download the complete datasheet for Texas Instruments MAX3243CDB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

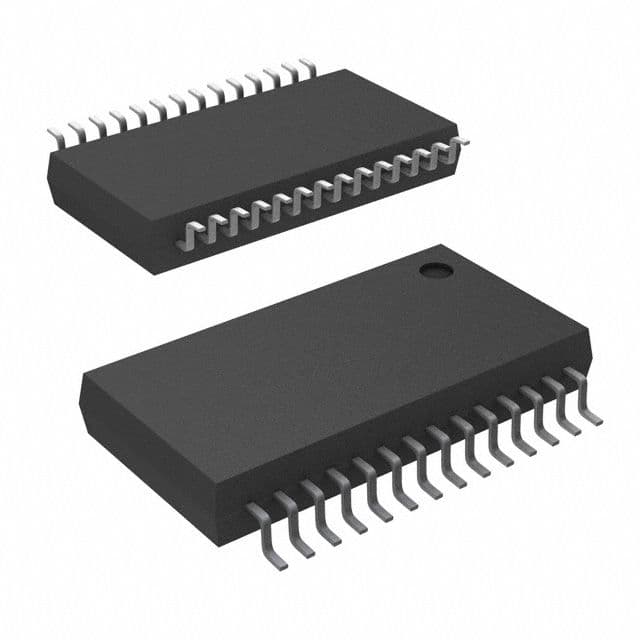

Product Images
