Texas Instruments
MAX3243ECDWR
3-V to 5.5-V Multichannel RS-232 Line Driver/Receiver With +/-15kV IEC ESD Protection 28-SOIC 0 to 70
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments MAX3243ECDWR technical specifications.
General
Package/Case
SOIC
Data Rate
500Kbps
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
3
Number of I/Os
16
Number of Receivers
5
Number of Transceivers
1
Number of Transmitters
3
Operating Supply Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
0.15us
Radiation Hardening
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Weight
0.025778oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MAX3243ECDWR Datasheet
Download the complete datasheet for Texas Instruments MAX3243ECDWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

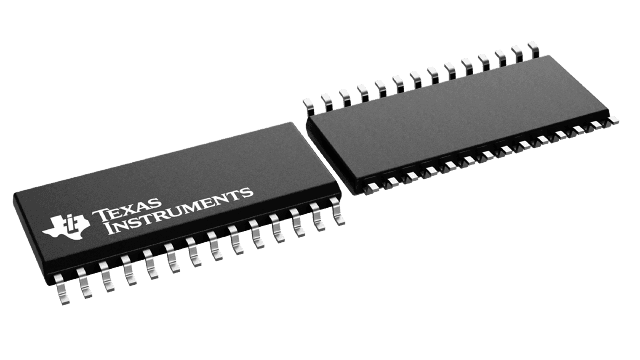

Product Images
