Quad transmitter RS-232 interface IC, featuring four independent drivers and transmitters. Operates with a dual supply voltage of 9V, with a minimum of 7.5V and a maximum of 15V. Supports data rates up to 300Kbps. Packaged in a 14-pin PDIP with through-hole mounting. RoHS compliant and lead-free.
PackageN
Current34mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments MC1488N technical specifications.
General
Package/Case
N
Data Rate
300Kbps
Dual Supply Voltage
9V
Height
4.57mm
Lead Free
Lead Free
Length
19.69mm
Max Dual Supply Voltage
15V
Min Dual Supply Voltage
7.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
15V
Min Supply Voltage
7.5V
Mount
Through Hole
Number of Drivers
4
Number of Transmitters
4
Operating Supply Voltage
9V
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
34mA
Weight
0.032734oz
Width
6.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MC1488N Datasheet
Download the complete datasheet for Texas Instruments MC1488N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

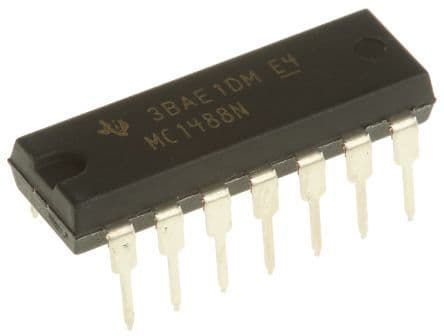

Product Images
