Quadruple low-power operational amplifier featuring a 1MHz bandwidth and 1MHz gain bandwidth product. This general-purpose op amp offers a 70dB common mode rejection ratio and a 0.6V/µs slew rate. Operating across a wide temperature range of -40°C to 85°C, it supports dual supply voltages from ±2.5V to ±15V and a single supply voltage from 5V to 30V. The device draws 2.8mA operating supply current and provides 30mA output current per channel.
PackageN
Current7mA
Quick Jump:
Technical Specifications
Texas Instruments MC3303NE4 technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | N |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 1MHz |
| Input Bias Current | 500nA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 2.5V |
| Max I/O Voltage | 8mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 5V |
| Nominal Gain Bandwidth Product | 1MHz |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 2.8mA |
| Operating Supply Voltage | 15V |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.6V/µs |
| Supply Current | 7mA |
| Technology | BIPOLAR |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 106.02dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MC3303NE4 Datasheet
Download the complete datasheet for Texas Instruments MC3303NE4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

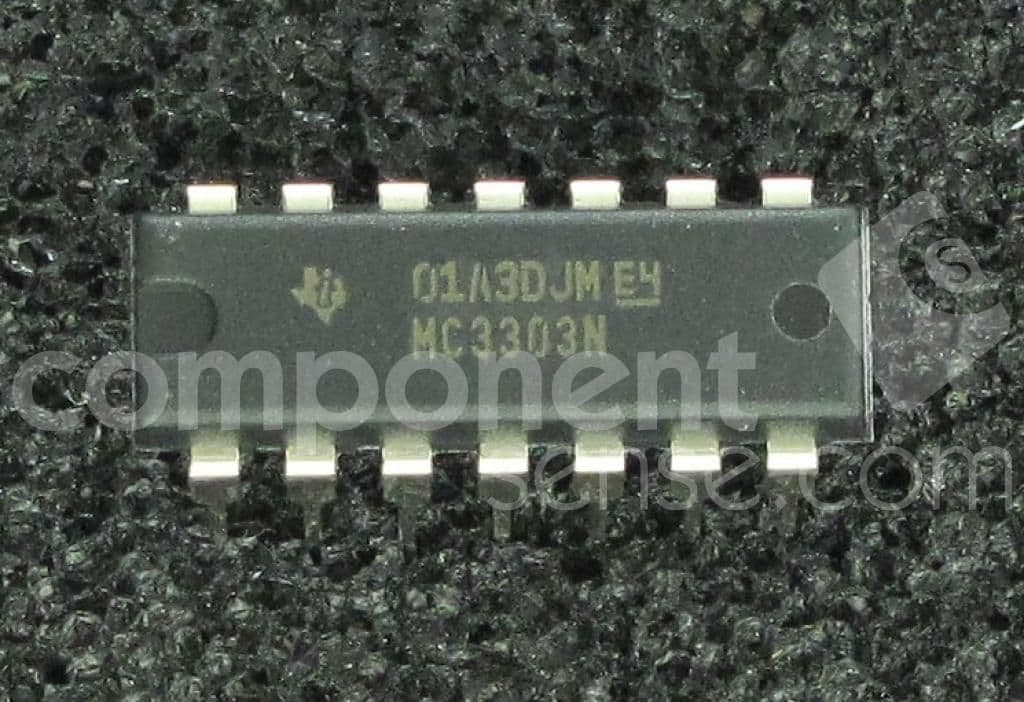

Product Images
