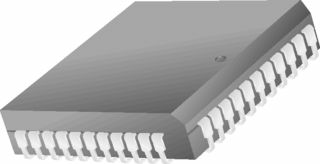

Surface mount liquid crystal display (LCD) driver IC featuring a serial interface and 32 segments. Operates with a supply voltage range of 3V to 10V, drawing a maximum supply current of 40µA. Offers an output current of 500mA and an output voltage of 50mV. This component functions across an extended temperature range of -40°C to 85°C with a maximum frequency of 1MHz and a power dissipation of 350mW.
Frequency1MHz
PackagePLCC
Current40uA
MountingSurface Mount
Quick Jump:
Technical Specifications

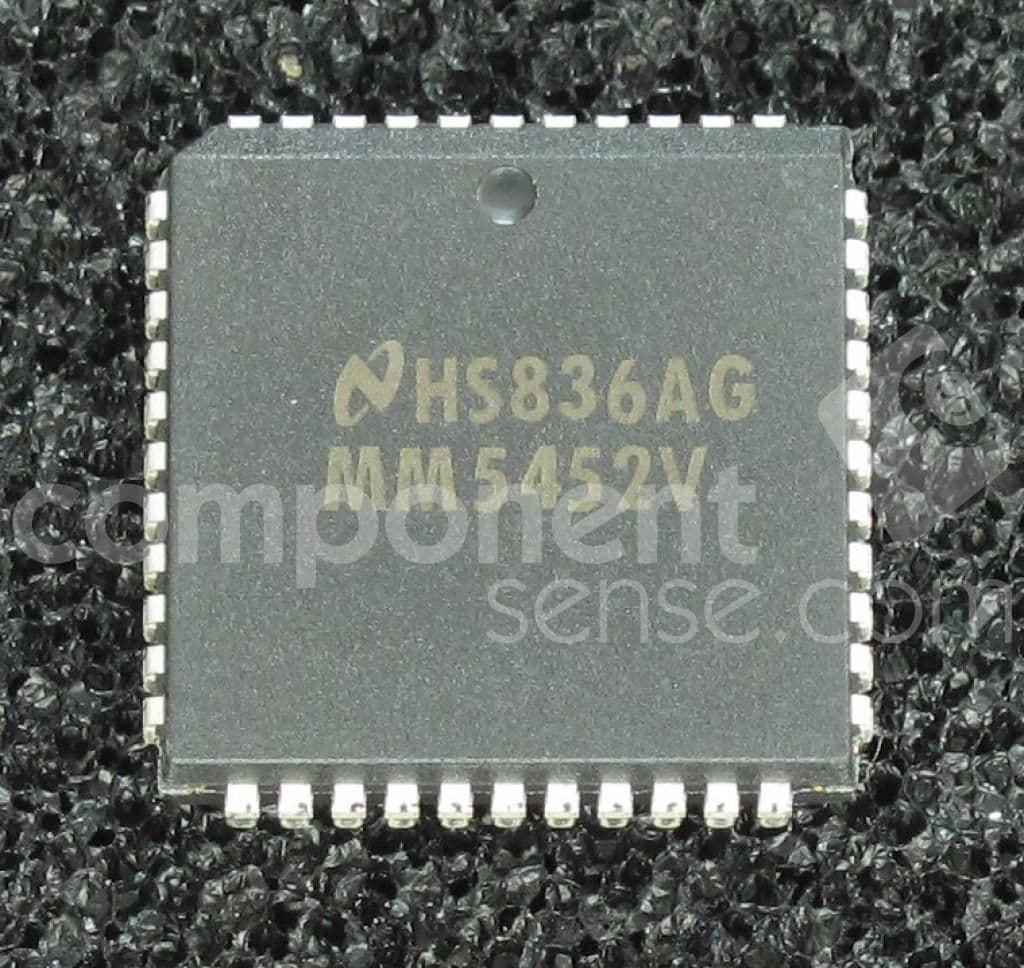

Texas Instruments MM5452V technical specifications.
General
Package/Case
PLCC
Display Type
LCD
Frequency
1MHz
Interface
Serial
Lead Free
Contains Lead
Max Frequency
1MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
350mW
Max Supply Current
40uA
Max Supply Voltage
10V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Segments
32
Output Current
500mA
Output Voltage
50mV
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
350mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Series
COPS™
Supply Current
40uA
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments MM5452V Datasheet
Download the complete datasheet for Texas Instruments MM5452V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
