16-bit ultra-low-power microcontroller featuring a 16-bit MSP430 core operating up to 8MHz. Integrated 4KB Flash memory and 256B RAM, with 5 channels of 10-bit Analog-to-Digital Converters. Supports UART, SPI, and USART interfaces, along with 14 programmable I/O pins. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C. Includes peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Packaged in a 32-VQFN, tape and reel, lead-free, and RoHS compliant.
Frequency8MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430F1122IRHBR technical specifications.
General
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
8MHz
Interface
UART, SPI, USART
Lead Free
Lead Free
Max Frequency
8MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
5
Number of ADC Channels
5
Number of GPIO
14
Number of I/Os
14
Number of Programmable I/O
14
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
MSP430x1xx
Watchdog Timer
Yes
Weight
0.002547oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F1122IRHBR Datasheet
Download the complete datasheet for Texas Instruments MSP430F1122IRHBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

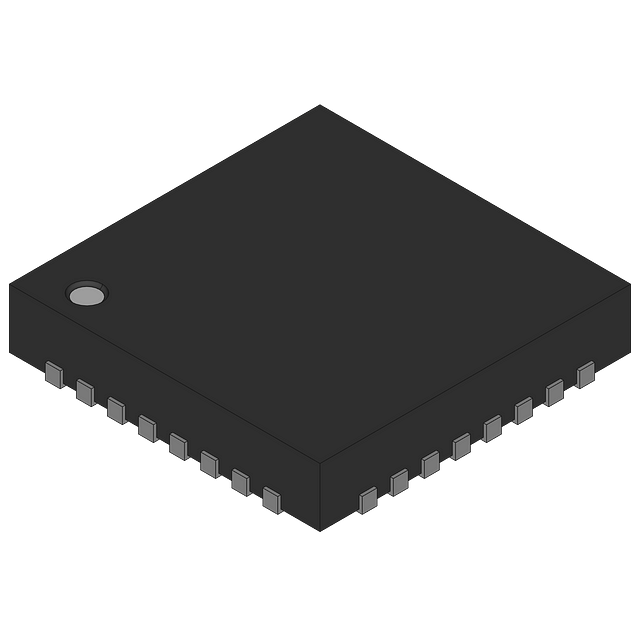

Product Images
