8 MHz, 16-bit microcontroller featuring 8KB FLASH memory and 256B SRAM. Integrated peripherals include a 10-bit ADC with 8 channels, a timer, and 3 PWM channels. Communication interfaces consist of SPI and UART. This lead-free, RoHS-compliant component operates from 1.8V to 3.6V, with an operating temperature range of -40°C to 85°C, housed in a 28-TSSOP package.
Frequency8MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F1232IPW technical specifications.
General
Address Bus Width
16b
Package/Case
TSSOP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
8MHz
Height
1.05mm
Interface
SPI, UART, USART
Lead Free
Lead Free
Length
9.8mm
Max Frequency
8MHz
Max Operating Temperature
85°C
Memory Size
8KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
22
Number of I/Os
22
Number of Programmable I/O
22
Number of PWM Channels
3
Number of SPI Channels
1
Number of Timers/Counters
1
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
50
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430x1xx
Thickness
1mm
Watchdog Timer
Yes
Weight
0.004145oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F1232IPW Datasheet
Download the complete datasheet for Texas Instruments MSP430F1232IPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

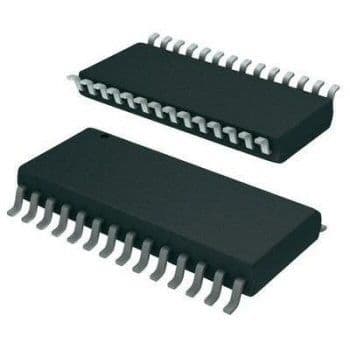

Product Images
