16-bit microcontroller operating at 16MHz, featuring 2KB of FLASH memory and 128B of SRAM. This MCU includes an integrated 10-bit Analog-to-Digital Converter with 8 channels, a timer, and I2C/SPI communication interfaces. Designed for a wide operating temperature range of -40°C to 105°C, it supports supply voltages from 1.8V to 3.6V. The device offers 10 programmable I/O pins and includes peripherals such as Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. Packaged in a 16-QFN (VQFN) format on tape and reel, this RoHS compliant component is lead-free.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2012TRSAR technical specifications.
General
| Package/Case | VQFN |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Frequency | 16MHz |
| Interface | I2C, SPI |
| Lead Free | Lead Free |
| Max Frequency | 16MHz |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 2KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 8 |
| Number of ADC Channels | 8 |
| Number of GPIO | 10 |
| Number of I/Os | 10 |
| Number of Programmable I/O | 10 |
| Number of Timers/Counters | 1 |
| Oscillator Type | Internal |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Radiation Hardening | No |
| RAM Size | 128B |
| RoHS Compliant | Yes |
| Series | MSP430F2xx |
| Watchdog Timer | Yes |
| Weight | 0.001623oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430F2012TRSAR Datasheet
Download the complete datasheet for Texas Instruments MSP430F2012TRSAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

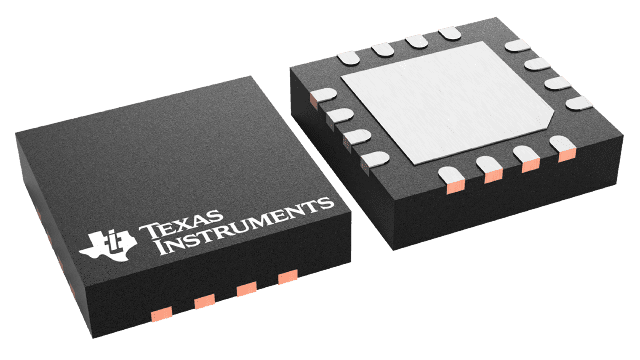

Product Images
