16-bit microcontroller featuring a 16MHz core, 1KB FLASH memory, and 128B SRAM. Integrated peripherals include a timer, comparator, I2C, SPI, and UART interfaces. This SMD/SMT component operates from 1.8V to 3.6V and is housed in a 20-SOIC package. It offers 16 programmable I/O pins and includes a watchdog timer.
Frequency16MHz
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2101IDW technical specifications.
General
| Address Bus Width | 16b |
| Package/Case | SOIC |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Density | 1KB |
| Frequency | 16MHz |
| Height | 2.35mm |
| Interface | I2C, SPI, UART |
| Lead Free | Lead Free |
| Length | 13mm |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 1KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.8V |
| Number of GPIO | 16 |
| Number of I/Os | 16 |
| Number of Programmable I/O | 16 |
| Number of Timers/Counters | 1 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 128B |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MSP430F2xx |
| Termination | SMD/SMT |
| Watchdog Timer | Yes |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430F2101IDW Datasheet
Download the complete datasheet for Texas Instruments MSP430F2101IDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

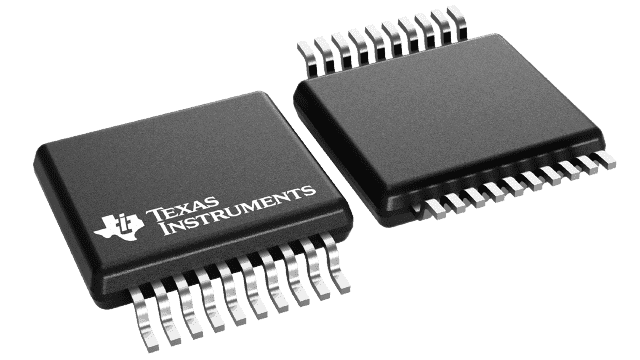

Product Images
