Texas Instruments
MSP430F2122TPWR
16-bit MCU, 16MHz, 4KB FLASH, 512B SRAM, 8ch 10-bit ADC, I2C/SPI/UART
16-bit microcontroller featuring a 16MHz core, 4KB FLASH memory, and 512B SRAM. Integrated peripherals include an 8-channel 10-bit Analog-to-Digital Converter (ADC), comparator, and multiple communication interfaces such as I2C, SPI, and UART. This device offers 24 programmable I/O pins and operates within a temperature range of -40°C to 105°C, housed in a 28-TSSOP package. Additional features include two timers/counters, brown-out detect/reset, and a watchdog timer.
Frequency16MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F2122TPWR technical specifications.
General
Package/Case
TSSOP
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART, LIN, SCI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
24
Number of I/Os
24
Number of Programmable I/O
24
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
MSP430F2xx
Watchdog Timer
Yes
Weight
0.004145oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F2122TPWR Datasheet
Download the complete datasheet for Texas Instruments MSP430F2122TPWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

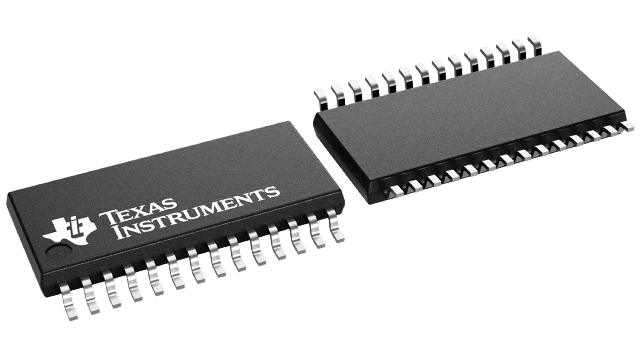

Product Images
