16-bit microcontroller featuring a 16MHz MSP430 core, 16KB FLASH memory, and 2KB SRAM. Integrated 12-bit ADC with 8 channels, a comparator, and hardware multiplier. Supports I2C, SPI, UART, and other serial interfaces. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 105°C. Includes 48 programmable I/Os, 2 timers, and peripherals like brown-out detect and watchdog timer.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430F235TRGCR technical specifications.
General
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI, IrDA, UART, USART, LIN, SCI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
105°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of ADC Channels
8
Number of GPIO
48
Number of I/Os
48
Number of Programmable I/O
48
Number of Timers/Counters
2
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
MSP430F2xx
Watchdog Timer
Yes
Weight
0.008021oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F235TRGCR Datasheet
Download the complete datasheet for Texas Instruments MSP430F235TRGCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

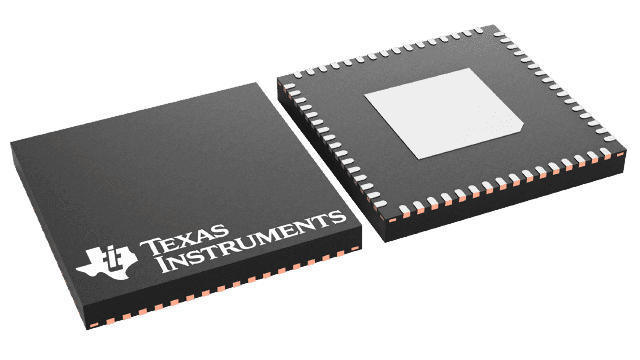

Product Images
