16-bit microcontroller (MCU) operating at 25MHz, featuring 32KB FLASH and 2KB SRAM. Includes a comparator, DMA, and a 16-bit high-resolution timer. Offers I2C, SPI, IrDA, UART, USART, and SCI interfaces with 29 GPIO pins. Housed in a 38-TSSOP package, this lead-free and RoHS compliant component operates from -40°C to 85°C with supply voltages between 1.8V and 3.6V.
Frequency25MHz
PackageTSSOP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F5171IDA technical specifications.
General
Package/Case
TSSOP
Core Architecture
CPUXV2
Data Bus Width
16b
Frequency
25MHz
Interface
I2C, SPI, IrDA, UART, USART, SCI
Lead Free
Lead Free
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of GPIO
29
Number of I/Os
29
Number of Programmable I/O
27
Number of Timers/Counters
9
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
40
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
MSP430F5xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F5171IDA Datasheet
Download the complete datasheet for Texas Instruments MSP430F5171IDA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

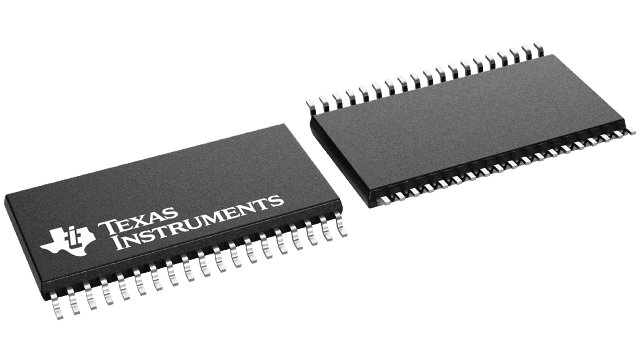

Product Images
