16-bit microcontroller featuring a 25MHz CPUXV2 core, 256KB FLASH memory, and 16KB SRAM. Integrated 12-bit ADC with 16 channels, DMA controller, and multiple communication interfaces including UART, SPI, and I2C. Offers 87 programmable I/Os, 3 timers/counters, and a hardware multiplier. Operates from -40°C to 85°C with supply voltages from 2.2V to 3.6V, packaged in VFBGA for tape and reel distribution.
Frequency25MHz
PackageVFBGA
Quick Jump:
Technical Specifications
Texas Instruments MSP430F5438AIZQWR technical specifications.
General
| Package/Case | VFBGA |
| Core Architecture | CPUXV2 |
| Data Bus Width | 16b |
| Frequency | 25MHz |
| Interface | I2C, SPI, IrDA, UART, USART, LIN, SCI |
| Lead Free | Lead Free |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 256KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.2V |
| Number of A/D Converters | 16 |
| Number of ADC Channels | 16 |
| Number of GPIO | 87 |
| Number of I/Os | 87 |
| Number of Programmable I/O | 87 |
| Number of Timers/Counters | 3 |
| Number of UART Channels | 4 |
| Oscillator Type | Internal |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 16KB |
| RoHS Compliant | Yes |
| Series | MSP430F5xx |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430F5438AIZQWR Datasheet
Download the complete datasheet for Texas Instruments MSP430F5438AIZQWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

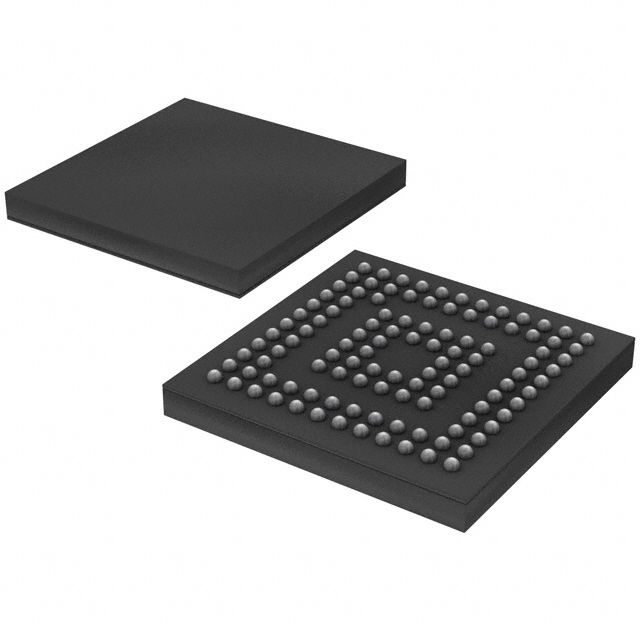

Product Images
