Texas Instruments
MSP430F5515IPNR
16-bit 25MHz MCU, 64KB Flash, 6KB SRAM, USB, UART/SPI/I2C, 63 I/O, LQFP
16-bit microcontroller operating at 25MHz, featuring 64KB Flash memory and 6KB SRAM. Integrated peripherals include a comparator, DMA, UART, SPI, I2C, USB, and four timers. Offers 63 programmable I/O pins and 16 analog-to-digital converter channels. Packaged in an 80-pin LQFP, this lead-free and RoHS compliant component operates from -40°C to 85°C.
Frequency25MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430F5515IPNR technical specifications.
General
| Package/Case | LQFP |
| Core Architecture | CPUXV2 |
| Data Bus Width | 16b |
| Frequency | 25MHz |
| Interface | I2C, SPI, USB, IrDA, UART, USART, SCI |
| Lead Free | Lead Free |
| Max Frequency | 25MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 64KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Number of A/D Converters | 16 |
| Number of GPIO | 63 |
| Number of I/Os | 63 |
| Number of Programmable I/O | 63 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 2 |
| Oscillator Type | Internal |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA |
| Radiation Hardening | No |
| RAM Size | 6KB |
| RoHS Compliant | Yes |
| Series | MSP430F5xx |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430F5515IPNR Datasheet
Download the complete datasheet for Texas Instruments MSP430F5515IPNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

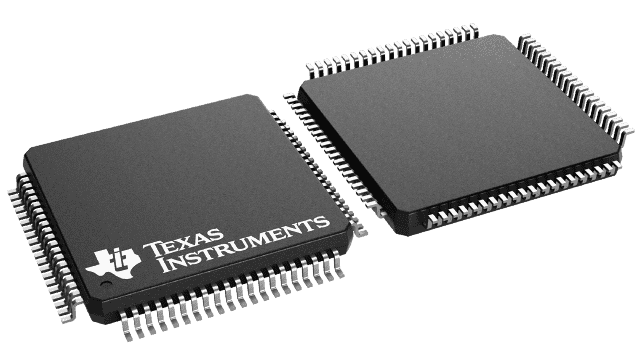

Product Images
