16-bit mixed-signal microcontroller featuring a 20MHz CPUXV2 core. Offers 256KB FLASH memory and 18KB RAM, with 74 programmable I/O pins. Integrated peripherals include 16 analog-to-digital converters, 4 timers/counters, 2 UART channels, and support for I2C, SPI, USB, IrDA, and USART interfaces. Operates across a -40°C to 85°C temperature range with supply voltages from 1.8V to 3.6V. Packaged in a 113-BGA VFBGA for tape and reel deployment.
Frequency20MHz
PackageVFBGA
Quick Jump:
Technical Specifications
Texas Instruments MSP430F5632IZQWT technical specifications.
General
Package/Case
VFBGA
Core Architecture
CPUXV2
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, USB, IrDA, UART, USART, SCI
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of A/D Converters
16
Number of ADC Channels
16
Number of GPIO
74
Number of I/Os
74
Number of Programmable I/O
74
Number of Timers/Counters
4
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
250
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
18KB
RoHS Compliant
Yes
Series
MSP430F5xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430F5632IZQWT Datasheet
Download the complete datasheet for Texas Instruments MSP430F5632IZQWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

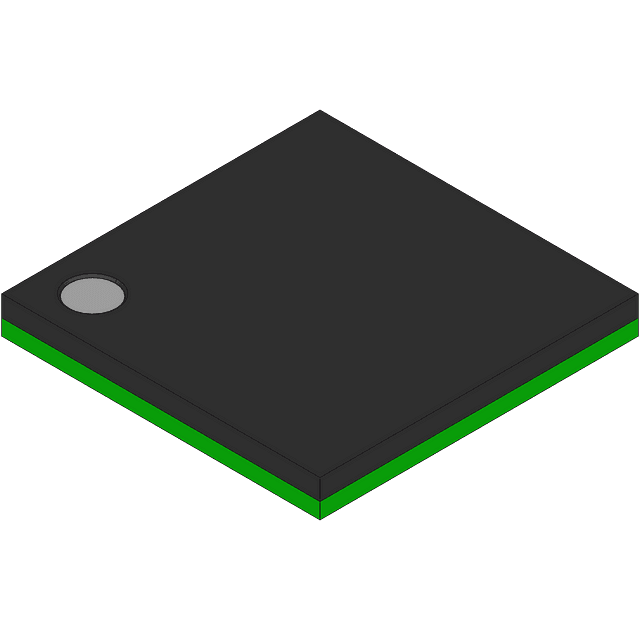

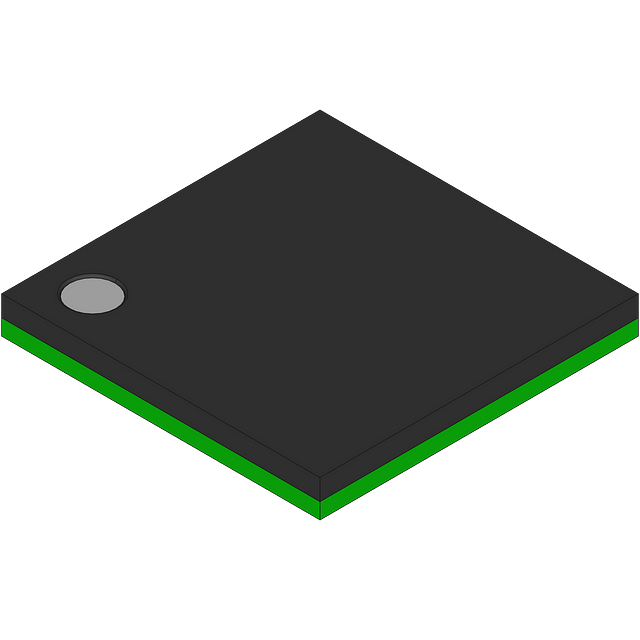

Product Images
