16-bit microcontroller featuring an 8 MHz core, 116KB FLASH memory, and 8KB SRAM. Integrated peripherals include a 12-bit ADC, dual DAC, DMA controller, three operational amplifiers, and an LCD driver supporting up to 160 segments. Communication interfaces encompass I2C, SPI, IrDA, UART, USART, SCI, and LIN. This SMD/SMT component operates within a temperature range of -40°C to 85°C and is housed in a 100-LQFP package.
Frequency8MHz
PackageLQFP
Quick Jump:
Technical Specifications
Texas Instruments MSP430FG4618IPZ technical specifications.
General
| Access Time | 8us |
| Package/Case | LQFP |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Density | 116KB |
| Frequency | 8MHz |
| Height | 1.4mm |
| Interface | I2C, SPI, IrDA, UART, USART, SCI, LIN |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 116KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 12 |
| Number of ADC Channels | 1 |
| Number of GPIO | 80 |
| Number of I/Os | 80 |
| Number of I2C Channels | 1 |
| Number of Programmable I/O | 80 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 90 |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD |
| Radiation Hardening | No |
| RAM Size | 8KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MSP430x4xx |
| Termination | SMD/SMT |
| Watchdog Timer | Yes |
| Weight | 0.023902oz |
| Width | 14mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430FG4618IPZ Datasheet
Download the complete datasheet for Texas Instruments MSP430FG4618IPZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

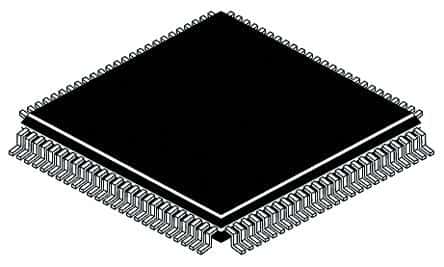

Product Images
