16-bit ultra-low-power microcontroller featuring 120KB Flash memory and 4KB RAM. Integrated 12-bit Analog-to-Digital Converter (ADC), dual Digital-to-Analog Converters (DACs), and Direct Memory Access (DMA) controller. Includes three operational amplifiers (OPAMPs) and supports up to 160 segment LCD displays. Operates at up to 16MHz with internal oscillator, offering I2C, SPI, IrDA, UART, USART, LIN, and SCI interfaces. Packaged in a VFBGA with 80 GPIO pins, supporting a supply voltage range of 1.8V to 3.6V and operating temperatures from -40°C to 85°C.
Frequency8MHz
PackageVFBGA
Quick Jump:
Technical Specifications
Texas Instruments MSP430FG4619IZQWT technical specifications.
General
| Package/Case | VFBGA |
| Core Architecture | MSP430 |
| Data Bus Width | 16b |
| Frequency | 8MHz |
| Interface | I2C, SPI, IrDA, UART, USART, LIN, SCI |
| Lead Free | Lead Free |
| Max Frequency | 16MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 120KB |
| Memory Type | FLASH, |
| Min Supply Voltage | 1.8V |
| Number of A/D Converters | 12 |
| Number of GPIO | 80 |
| Number of I/Os | 80 |
| Number of Programmable I/O | 80 |
| Number of Timers/Counters | 2 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, DMA, LCD |
| RAM Size | 4KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | MSP430x4xx |
| Watchdog Timer | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments MSP430FG4619IZQWT Datasheet
Download the complete datasheet for Texas Instruments MSP430FG4619IZQWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

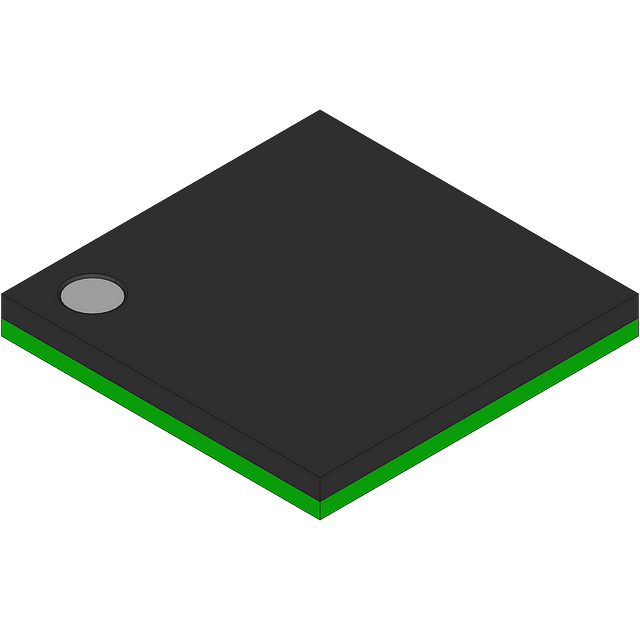

Product Images
