16 MHz, 16-bit microcontroller featuring 1KB FLASH and 128B SRAM. Includes a comparator and a timer, with 10 programmable I/O pins. Operates from 1.8V to 3.6V supply, with a temperature range of -40°C to 85°C. Packaged in a 16-QFN (VQFN) on tape and reel, this RoHS compliant component offers internal oscillator, brown-out detect, POR, PWM, and watchdog timer peripherals.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2111IRSA16R technical specifications.
General
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
1KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Number of GPIO
10
Number of I/Os
10
Number of Programmable I/O
10
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
1
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
MSP430G2xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430G2111IRSA16R Datasheet
Download the complete datasheet for Texas Instruments MSP430G2111IRSA16R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

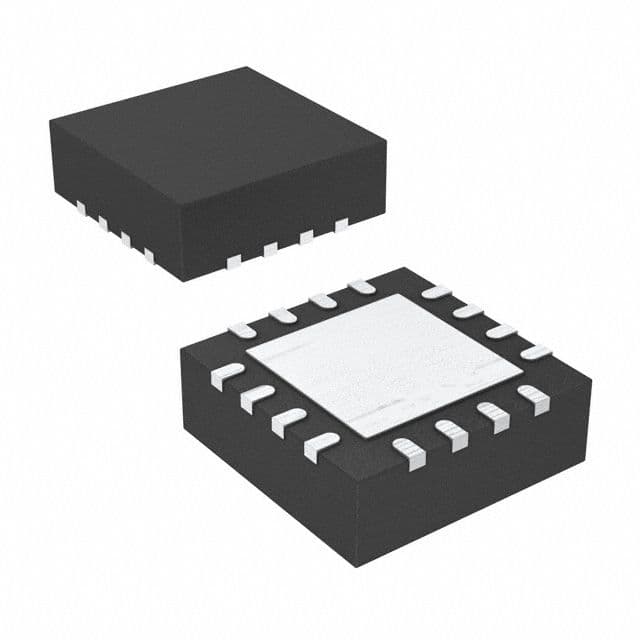

Product Images
