16-bit RISC microcontroller featuring a 16MHz core clock speed and 1KB of FLASH memory. This integrated circuit offers 128 bytes of RAM and includes 10 programmable I/O pins. Key peripherals include a watchdog timer, Brown-out Detect/Reset, POR, and PWM capabilities. The microcontroller operates within a temperature range of -40°C to 85°C and utilizes an internal oscillator.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2111IRSAQ1 technical specifications.
General
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Lead Free
Contains Lead
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
1KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of GPIO
10
Number of I/Os
10
Number of Programmable I/O
10
Number of Timers/Counters
1
Operating Supply Voltage
3.6V
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
No
Series
Automotive, AEC-Q100, MSP430G2
Watchdog Timer
Yes
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments MSP430G2111IRSAQ1 Datasheet
Download the complete datasheet for Texas Instruments MSP430G2111IRSAQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

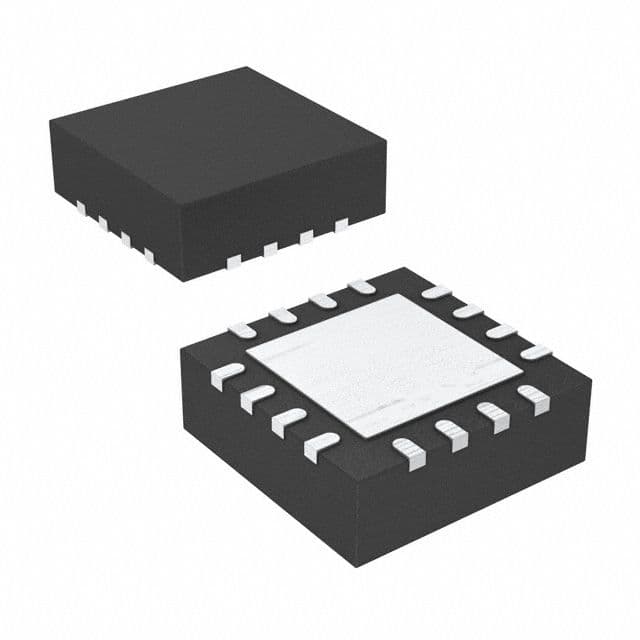

Product Images
