16-bit mixed-signal microcontroller featuring an MSP430 core operating at up to 16MHz. This device offers 1KB FLASH memory, 128B RAM, and 10 programmable I/O pins. Integrated peripherals include I2C and SPI interfaces, an 8-channel Analog-to-Digital converter, and a watchdog timer. Designed for operation between -40°C and 85°C with a supply voltage range of 1.8V to 3.6V, it is packaged in a 16-VQFN and supplied on tape and reel.
Frequency16MHz
PackageVQFN
Quick Jump:
Technical Specifications
Texas Instruments MSP430G2112IRSA16R technical specifications.
General
Package/Case
VQFN
Core Architecture
MSP430
Data Bus Width
16b
Frequency
16MHz
Interface
I2C, SPI
Lead Free
Lead Free
Max Frequency
16MHz
Max Operating Temperature
85°C
Memory Size
1KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of A/D Converters
8
Number of GPIO
16
Number of I/Os
10
Number of Programmable I/O
10
Number of Timers/Counters
1
Oscillator Type
Internal
Package Quantity
3000
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
128B
RoHS Compliant
Yes
Series
MSP430G2xx
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments MSP430G2112IRSA16R Datasheet
Download the complete datasheet for Texas Instruments MSP430G2112IRSA16R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

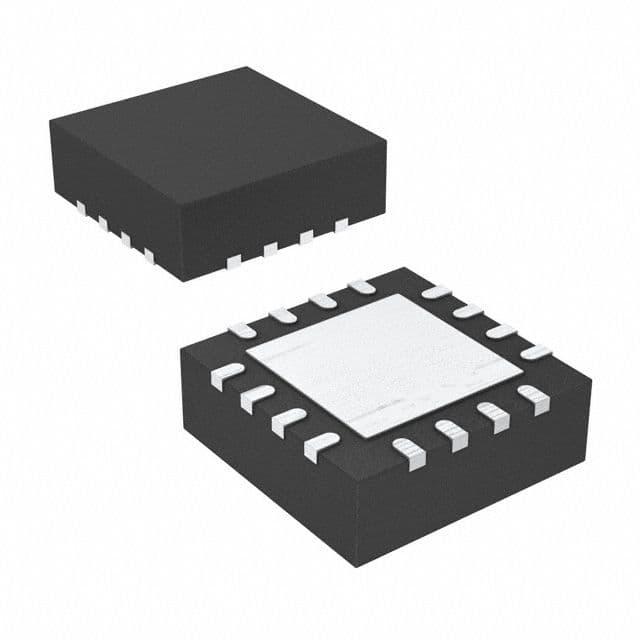

Product Images
