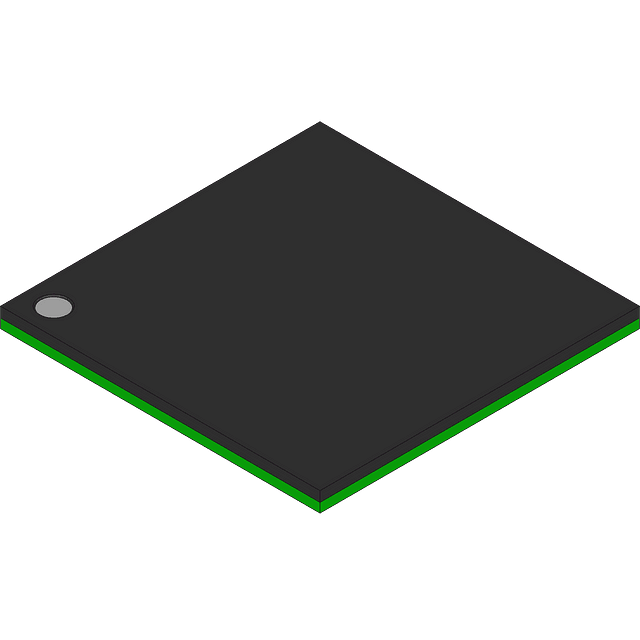

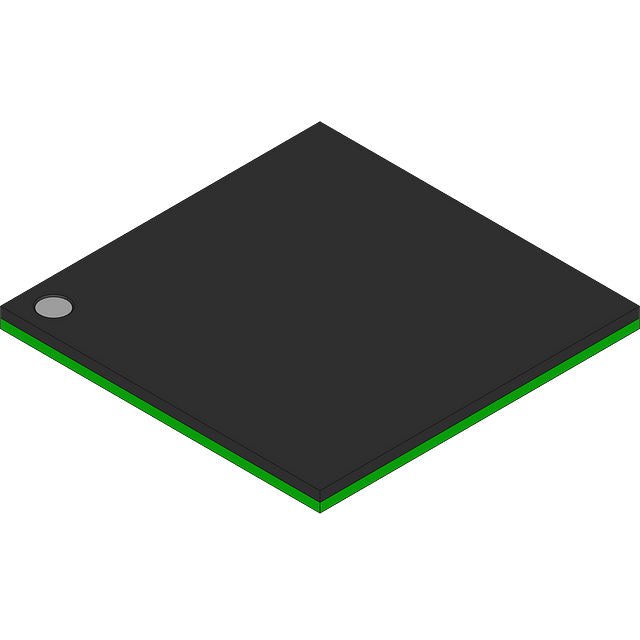

32-bit ARM applications processor operating at 600MHz. Features a single core with 64KB RAM and 288KB ROM/L2 Cache. Offers 188 I/Os supporting I2C, USB, MMC, SDIO, UART, 1-WIRE, and SPI interfaces. Packaged in a 168-pin FCBGA for surface mounting, with an operating temperature range of 0°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments OMAP3503DCBB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments OMAP3503DCBB technical specifications.
| Package/Case | FCBGA |
| Core Architecture | ARM |
| Data Bus Width | 32b |
| Frequency | 600MHz |
| Height | 0.61mm |
| Interface | I2C, USB, MMC, SDIO, UART, 1-WIRE, SPI |
| Lead Free | Contains Lead |
| Length | 12mm |
| Max Frequency | 600MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 1.35V |
| Memory Size | 288KB |
| Memory Type | ROM, L2 Cache |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 985mV |
| Mount | Surface Mount |
| Number of Bits | 32 |
| Number of Cores | 1 |
| Number of I/Os | 188 |
| Number of Timers/Counters | 12 |
| Number of UART Channels | 3 |
| Package Quantity | 168 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 64KB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | OMAP-35xx |
| Termination | SMD/SMT |
| Width | 12mm |
| RoHS | Compliant |
