Texas Instruments
OMAP3515ECUSA
Sitara Processor: Arm Cortex-A8, 3D Graphics, LPDDR 423-FCBGA -40 to 105
Frequency720MHz
PackageFCBGA
Voltage1.35V
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments OMAP3515ECUSA technical specifications.
General
Package/Case
FCBGA
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, SPI, USB, UART
Lead Free
Lead Free
Max Frequency
720MHz
Max Operating Temperature
105°C
Max Supply Voltage
1.89V
Memory Type
ROM, L2 Cache
Min Operating Temperature
-40°C
Min Supply Voltage
1.71V
Mount
Surface Mount
Number of Cores
1
Number of UART Channels
3
Package Quantity
90
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
OMAP-35xx
Voltage
1.35V
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OMAP3515ECUSA Datasheet
Download the complete datasheet for Texas Instruments OMAP3515ECUSA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

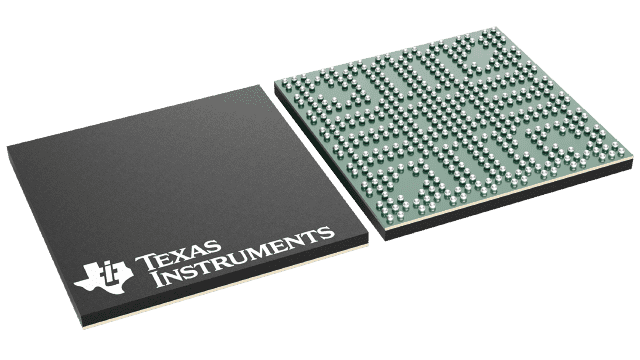

Product Images
