Frequency720MHz
PackageFCBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments OMAP3530DCBC technical specifications.
General
Package/Case
FCBGA
Core Architecture
ARM
Data Bus Width
32b
Interface
I2C, USB, MMC, SDIO, UART, 1-WIRE
Lead Free
Contains Lead
Max Frequency
720MHz
Max Operating Temperature
90°C
Max Supply Voltage
1.35V
Memory Type
ROM, L2 Cache
Min Operating Temperature
0°C
Min Supply Voltage
985mV
Mount
Surface Mount
Number of Cores
1
Number of Timers/Counters
12
Number of UART Channels
3
Package Quantity
119
Packaging
Tray
Radiation Hardening
No
RAM Size
64KB
RoHS Compliant
Yes
Series
OMAP-35xx
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OMAP3530DCBC Datasheet
Download the complete datasheet for Texas Instruments OMAP3530DCBC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

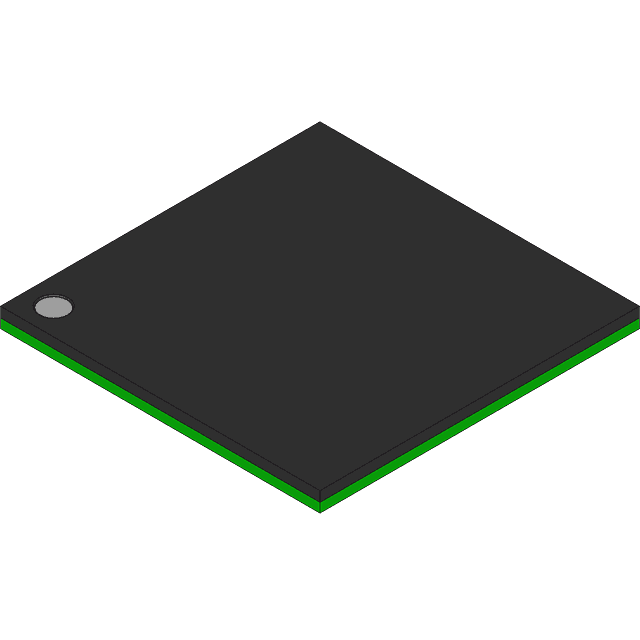

Product Images
