High-performance audio operational amplifier featuring FET inputs, a 8MHz bandwidth, and 20V/µs slew rate. This single-channel, general-purpose op-amp offers a 120dB voltage gain and 96dB common mode rejection ratio. It operates with dual supply voltages from ±2.5V to ±18V, drawing 4mA of supply current. The component is housed in an 8-SOIC package with dimensions of 4.9mm (L) x 3.91mm (W) x 1.58mm (H). It is lead-free, RoHS compliant, and suitable for operation across a temperature range of -40°C to 125°C.
PackageD
Current4.8mA
Quick Jump:
Technical Specifications
Texas Instruments OPA132UA technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
8MHz
Package/Case
D
Common Mode Rejection Ratio
96dB
Dual Supply Voltage
15V
Gain Bandwidth Product
8MHz
Height
1.58mm
Input Bias Current
50pA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.5V
Max I/O Voltage
2mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
18V
Min Supply Voltage
2.5V
Nominal Gain Bandwidth Product
8MHz
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
4mA
Output Current per Channel
40mA
Package Quantity
75
Packaging
Rail/Tube
RoHS Compliant
Yes
Series
OPA132
Slew Rate
20V/µs
Supply Current
4.8mA
Technology
BIFET
Unity Gain Bandwidth Product
8MHz
Voltage Gain
120dB
Weight
0.002677oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA132UA Datasheet
Download the complete datasheet for Texas Instruments OPA132UA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

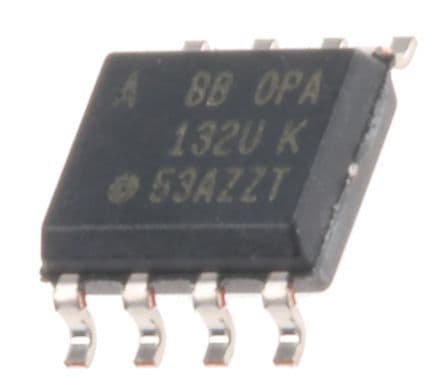

Product Images
