Single, JFET operational amplifier featuring 11MHz bandwidth and 20V/µs slew rate. Offers precision performance with 120µV input offset voltage and 10pA input bias current. Supports single-supply operation from 4.5V to 36V, with a maximum dual supply voltage of 18V. Achieves 126dB common mode rejection ratio and 140dB power supply rejection ratio. Packaged in an 8-SOIC case, operating from -40°C to 125°C.
PackageD
Current2mA
Quick Jump:
Technical Specifications
Texas Instruments OPA140AID technical specifications.
General
Amplifier Type
PRECISION
Bandwidth
11MHz
Package/Case
D
Common Mode Rejection Ratio
126dB
Gain Bandwidth Product
11MHz
Height
1.5mm
Input Bias Current
10pA
Input Offset Voltage (Vos)
120uV
Lead Free
Lead Free
Length
5mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.25V
Max I/O Voltage
120uV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Nominal Gain Bandwidth Product
11MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1.8mA
Operating Supply Voltage
18V
Output Current
36mA
Output Current per Channel
36mA
Package Quantity
75
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
140dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
20V/µs
Supply Current
2mA
Technology
BIFET
Thickness
1.58mm
Unity Gain Bandwidth Product
11MHz
Voltage Gain
126dB
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA140AID Datasheet
Download the complete datasheet for Texas Instruments OPA140AID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

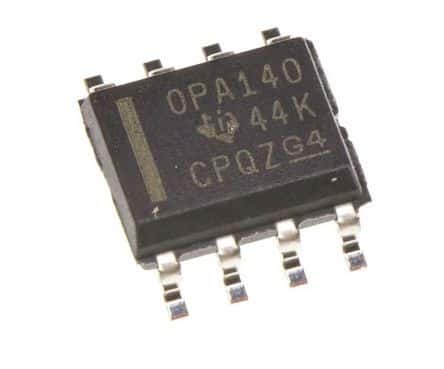

Product Images
