Single operational amplifier with a low input offset voltage of 20µV and a high common mode rejection ratio of 115dB. Features a gain bandwidth product of 600kHz and a slew rate of 0.3V/µs, operating with dual supply voltages up to ±22V. This general-purpose amplifier offers a voltage gain of 135.56dB and a power supply rejection ratio of 110dB, housed in an 8-pin SOIC package.
PackageD
Current1.5mA
Quick Jump:
Technical Specifications
Texas Instruments OPA177GS technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
600kHz
Package/Case
D
Common Mode Rejection Ratio
115dB
Dual Supply Voltage
18V
Gain Bandwidth Product
600kHz
Height
1.58mm
Input Bias Current
2.8nA
Input Offset Voltage (Vos)
20uV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
3V
Max I/O Voltage
60uV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
2mA
Nominal Gain Bandwidth Product
600kHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1.3mA
Operating Supply Voltage
18V
Package Quantity
75
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
110dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.3V/µs
Supply Current
1.5mA
Technology
BIPOLAR
Voltage Gain
135.56dB
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA177GS Datasheet
Download the complete datasheet for Texas Instruments OPA177GS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

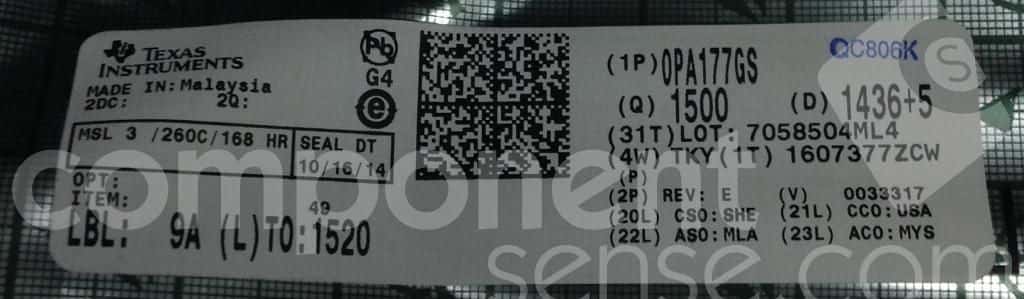

Product Images
