Precision operational amplifier featuring 1.1nV/√Hz noise, 45MHz bandwidth, and 80MHz gain bandwidth product. This general-purpose amplifier offers a low input offset voltage of 30µV and input bias current of 175nA. Operating from ±2.25V to ±18V dual supply or 4.5V to 36V single supply, it delivers 30mA output current. With a 27V/µs slew rate and high PSRR (140dB) and CMRR (114dB), it is suitable for demanding applications. Packaged in an 8-SOIC, this RoHS compliant component operates across a -40°C to 125°C temperature range.
PackageD
Current6mA
Quick Jump:
Technical Specifications
Texas Instruments OPA211AID technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
45MHz
Package/Case
D
Common Mode Rejection Ratio
114dB
Gain Bandwidth Product
80MHz
Input Bias Current
175nA
Input Offset Voltage (Vos)
30uV
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.25V
Max I/O Voltage
125uV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Nominal Gain Bandwidth Product
45MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
3.6mA
Operating Supply Voltage
18V
Output Current
30mA
Output Current per Channel
30mA
Package Quantity
75
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
140dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
27V/µs
Supply Current
6mA
Unity Gain Bandwidth Product
80MHz
Voltage Gain
114dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA211AID Datasheet
Download the complete datasheet for Texas Instruments OPA211AID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

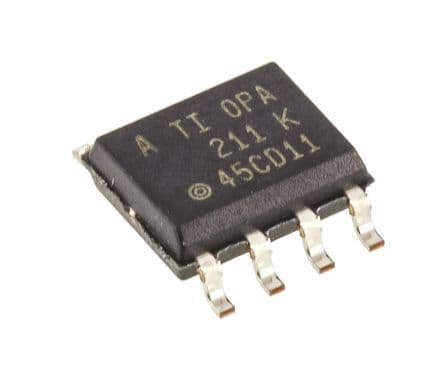

Product Images
