Precision operational amplifier featuring 1.1nV/√Hz noise, 80MHz gain bandwidth product, and 27V/µs slew rate. This general-purpose, single-channel amplifier offers a low input bias current of 175nA and an input offset voltage of 30µV. It operates with a dual supply voltage range from ±2.25V to ±18V, or a single supply from 4.5V to 36V, consuming 3.6mA operating supply current. The amplifier is housed in an 8-SON package, is RoHS compliant, and operates across a temperature range of -40°C to 125°C.
PackageSON
Current6mA
Quick Jump:
Technical Specifications
Texas Instruments OPA211AIDRGTG4 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Package/Case
SON
Common Mode Rejection Ratio
114dB
Gain Bandwidth Product
80MHz
Input Bias Current
175nA
Input Offset Voltage (Vos)
30uV
Lead Free
Lead Free
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.25V
Max I/O Voltage
125uV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Nominal Gain Bandwidth Product
45MHz
Number of Channels
1
Number of Circuits
1
Operating Supply Current
3.6mA
Operating Supply Voltage
18V
Output Current
30mA
Output Current per Channel
30mA
Package Quantity
250
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
27V/µs
Supply Current
6mA
Voltage Gain
114dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA211AIDRGTG4 Datasheet
Download the complete datasheet for Texas Instruments OPA211AIDRGTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

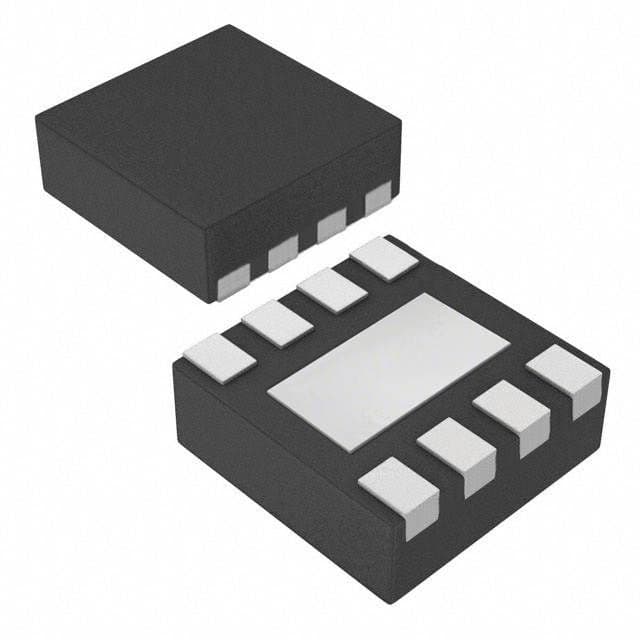

Product Images
