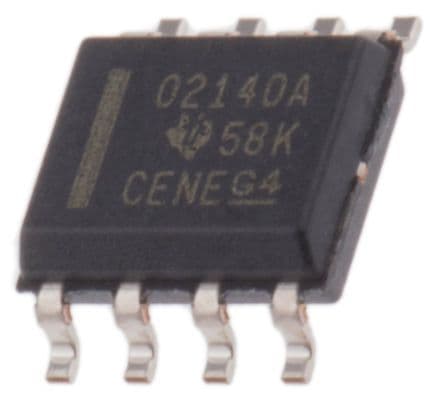

Precision, dual JFET operational amplifier featuring an 11MHz bandwidth and 20V/µs slew rate. Offers rail-to-rail output, 120µV input offset voltage, and 10pA input bias current. Supports a wide supply voltage range from 2.25V to 36V, with a typical operating supply current of 1.8mA. Achieves excellent noise performance with 126dB common mode rejection ratio and 140dB power supply rejection ratio. Packaged in an 8-SOIC (D) with a compact 5mm x 4mm x 1.5mm footprint, operating from -40°C to 125°C.
Frequency1MHz
PackageD
Current2mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2140AID technical specifications.
General
Bandwidth
11MHz
Package/Case
D
Common Mode Rejection Ratio
126dB
Gain Bandwidth Product
11MHz
Height
1.5mm
Input Bias Current
10pA
Input Offset Voltage (Vos)
120uV
Lead Free
Lead Free
Length
5mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.25V
Max Frequency
1MHz
Max I/O Voltage
120uV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Nominal Gain Bandwidth Product
11MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1.8mA
Operating Supply Voltage
18V
Output Current
36mA
Output Current per Channel
36mA
Package Quantity
75
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
140dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
20V/µs
Supply Current
2mA
Technology
BIFET
Unity Gain Bandwidth Product
11MHz
Voltage Gain
126dB
Width
4mm
Compliance
RoHS
Compliant
