TEXAS INSTRUMENTS

OPA2211AIDDA

Datasheet

2-Ch Op Amp, 45MHz BW, 1.1nV/rtHz Noise, 18V, SOIC

Texas Instruments

OPA2211AIDDA

Name: OPA2211AIDDA Texas Instruments
Brand: Texas Instruments
SKU: OPA2211AIDDA

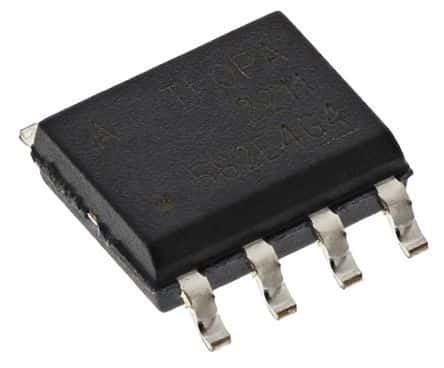

2-Ch Op Amp, 45MHz BW, 1.1nV/rtHz Noise, 18V, SOIC

Dual-channel, general-purpose operational amplifier featuring 45MHz bandwidth and 80MHz gain bandwidth product. Delivers 1.1nV/√Hz noise performance with a low 3.6mA operating supply current. Offers 125µV input offset voltage and 175nA input bias current, with a high 114dB common mode rejection ratio. Operates from ±2.25V to ±18V dual supply or 4.5V to 36V single supply, with a 27V/µs slew rate. Packaged in an 8-SOIC profile, this RoHS compliant component is rated for -40°C to 125°C operation.

Frequency1MHz

PackageSOIC

Current3.6mA

Quick Jump:

Technical Specifications

Texas Instruments OPA2211AIDDA technical specifications.

General

Amplifier Type	GENERAL PURPOSE
Bandwidth	45MHz
Package/Case	SOIC
Common Mode Rejection Ratio	114dB
Gain Bandwidth Product	80MHz
Height	1.55mm
Input Bias Current	175nA
Input Offset Voltage (Vos)	125uV
Lead Free	Lead Free
Length	5mm
Max Dual Supply Voltage	18V
Min Dual Supply Voltage	2.25V
Max Frequency	1MHz
Max I/O Voltage	150uV
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Supply Voltage	36V
Min Supply Voltage	4.5V
Nominal Gain Bandwidth Product	45MHz
Number of Amplifiers	2
Number of Channels	2
Number of Circuits	2
Number of Elements	2
Operating Supply Current	3.6mA
Operating Supply Voltage	18V
Output Current	30mA
Output Current per Channel	45mA
Package Quantity	75
Packaging	Rail/Tube
Power Supply Rejection Ratio (PSRR)	140dB
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Slew Rate	27V/µs
Supply Current	3.6mA
Unity Gain Bandwidth Product	80MHz
Voltage Gain	114dB
Width	4mm
