Precision operational amplifier featuring a 45MHz gain bandwidth product and 27V/µs slew rate. This dual-channel amplifier offers a low noise density of 1.1nV/√Hz and a high common mode rejection ratio of 114dB. Operating from a 2.25V to 36V supply range, it consumes 3.6mA of supply current. The 8-SON package provides a compact solution for applications requiring high precision and low power consumption.
Frequency1MHz
PackageSON
Current3.6mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2211AIDRGT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
45MHz
Package/Case
SON
Common Mode Rejection Ratio
114dB
Gain Bandwidth Product
80MHz
Height
0.95mm
Input Bias Current
175nA
Input Offset Voltage (Vos)
125uV
Lead Free
Lead Free
Length
3.1mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
2.25V
Max Frequency
1MHz
Max I/O Voltage
150uV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
36V
Min Supply Voltage
4.5V
Nominal Gain Bandwidth Product
45MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
3.6mA
Operating Supply Voltage
18V
Output Current
30mA
Output Current per Channel
45mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
140dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
27V/µs
Supply Current
3.6mA
Unity Gain Bandwidth Product
80MHz
Voltage Gain
114dB
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2211AIDRGT Datasheet
Download the complete datasheet for Texas Instruments OPA2211AIDRGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

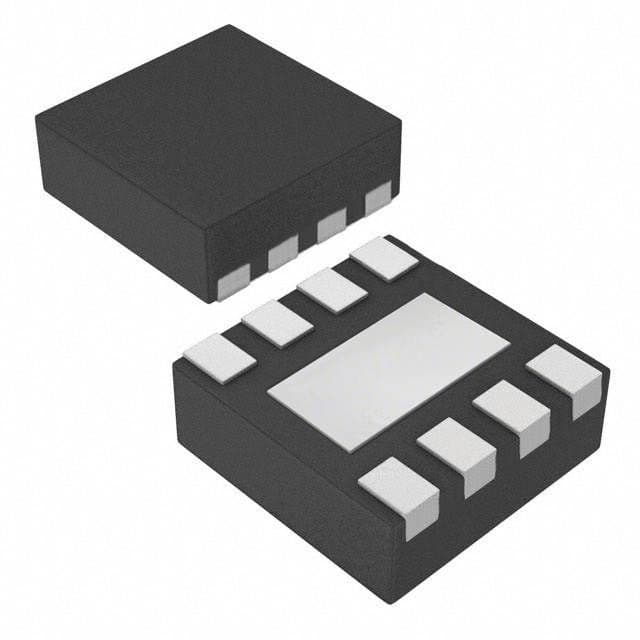

Product Images
