Texas Instruments
OPA2335AMJG
0.05uV/C max, Single-Supply CMOS Operational Amplifier 8-CDIP -55 to 125
PackageCDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments OPA2335AMJG technical specifications.
General
Package/Case
CDIP
Common Mode Rejection Ratio
110dB
Gain Bandwidth Product
2MHz
Input Bias Current
200pA
Input Offset Voltage (Vos)
5uV
Max Dual Supply Voltage
2.75V
Min Dual Supply Voltage
1.35V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Through Hole
Number of Channels
2
Number of Elements
2
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
120dB
Radiation Hardening
No
RoHS Compliant
No
Slew Rate
1.6V/µs
Technology
CMOS
Unity Gain Bandwidth Product
2MHz
Voltage Gain
130dB
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments OPA2335AMJG Datasheet
Download the complete datasheet for Texas Instruments OPA2335AMJG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

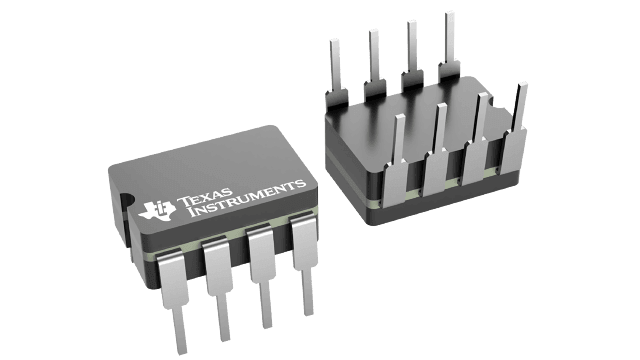

Product Images
