Dual operational amplifier featuring a 1MHz bandwidth and 1MHz gain bandwidth product. This general-purpose op amp operates from 2.5V to 5.5V with a low 45µA operating supply current. It offers a 0.5V/µs slew rate, 10mA output current per channel, and a 70dB common mode rejection ratio. The device is housed in a compact 8-SOT-23 package, measuring 2.9mm in length, 1.63mm in width, and 1.1mm in height, with an operating temperature range of -40°C to 125°C.
PackageSSOP
Current65uA
Quick Jump:
Technical Specifications
Texas Instruments OPA2348AIDCNT technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
SSOP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
1MHz
Height
1.1mm
Input Bias Current
10pA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Length
2.9mm
Max I/O Voltage
5mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Nominal Gain Bandwidth Product
1MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
45uA
Output Current
10mA
Output Current per Channel
10mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
84.44dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.5V/µs
Supply Current
65uA
Technology
CMOS
Unity Gain Bandwidth Product
1MHz
Voltage Gain
108dB
Width
1.63mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2348AIDCNT Datasheet
Download the complete datasheet for Texas Instruments OPA2348AIDCNT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

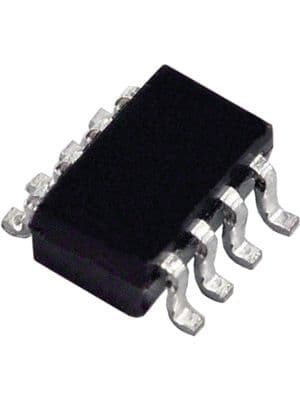

Product Images
