Dual operational amplifier featuring 6.5MHz bandwidth and 5V/µs slew rate. This CMOS device offers rail-to-rail input/output with a 585µA operating supply current. It operates from a 2.7V to 5.5V supply range and boasts 80dB common mode rejection and 92.04dB power supply rejection. With a 10pA input bias current and 5mV input offset voltage, it is suitable for general-purpose applications across a -40°C to 125°C temperature range.
PackageSSOP
Current1.5mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2374AIDCNTG4 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
6.5MHz
Package/Case
SSOP
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
6.5MHz
Input Bias Current
10pA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Max I/O Voltage
5mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Nominal Gain Bandwidth Product
6.5MHz
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
585uA
Package Quantity
250
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
92.04dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
5V/µs
Supply Current
1.5mA
Technology
CMOS
Unity Gain Bandwidth Product
6.5MHz
Voltage Gain
110dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2374AIDCNTG4 Datasheet
Download the complete datasheet for Texas Instruments OPA2374AIDCNTG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

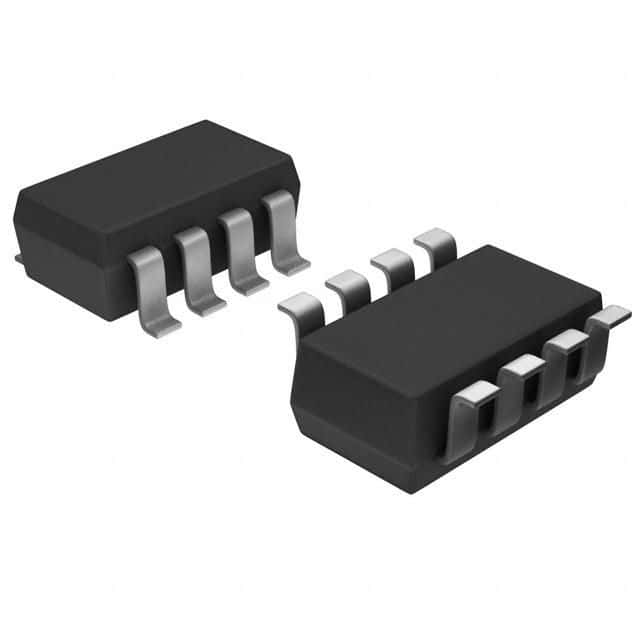

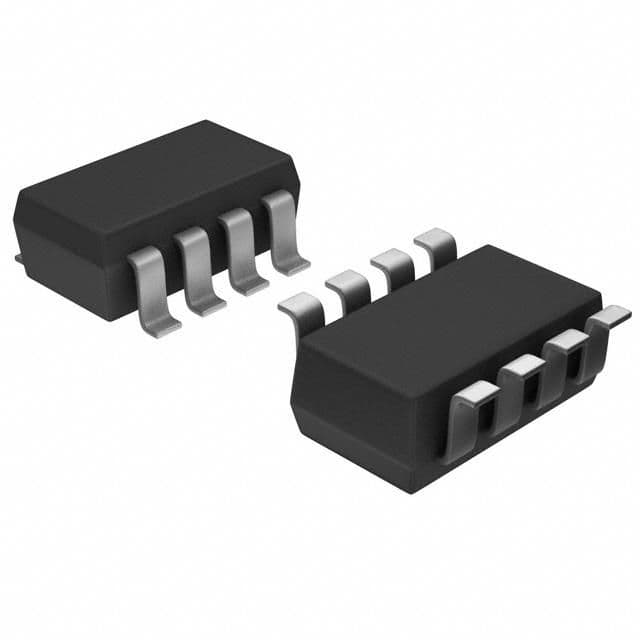

Product Images
